Inverter Duty Transformers
Manufacturer

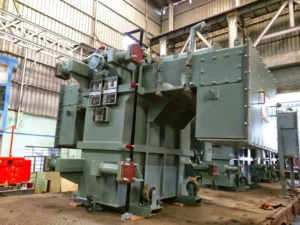

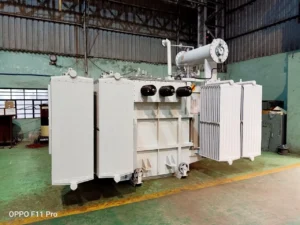

Inverter Duty Transformers
Century Transformers Pvt. Ltd. manufactures Inverter Duty Transformers engineered for reliable performance in solar power plants, renewable energy projects, industrial facilities, and inverter-based electrical systems. Designed to manage harmonic loads, voltage fluctuations, and variable-frequency operations, these transformers support efficient and stable power conversion. Advanced manufacturing processes, quality materials, and rigorous testing ensure dependable operation, reduced energy losses, effective heat management, and extended service life. Based in West Bengal, Century Transformers Pvt. Ltd. supplies customized inverter duty transformer solutions across India, meeting diverse capacity, voltage, and application requirements with precision-engineered products focused on safety, efficiency, durability, and consistent electrical performance.
Technical Specification of Inverter Duty Transformers
| Technical Parameter | Typical Specification / Configuration |
|---|---|
| Transformer Application | Inverter Duty Transformer for solar, renewable energy and industrial inverter systems |
| Transformer Construction | Outdoor, oil-immersed, sealed or conservator-type construction as required |
| Rated Capacity | Available in customized ratings according to project load and inverter capacity |
| Phase Configuration | Three-phase electrical system |
| Operating Frequency | 50 Hz |
| High Voltage Rating | Typically 11 kV, with other voltage levels available as per project requirement |
| Low Voltage Rating | Customized according to inverter output and system design |
| Vector Group | Dyn11 or other vector configuration as specified by the application |
| Cooling Arrangement | ONAN – Oil Natural Air Natural cooling |
| Winding Conductor | High-quality copper or aluminium conductors, selected according to design requirements |
| Core Material | High-grade CRGO electrical steel for efficient magnetic performance |
| Core Design | Precision-built low-loss step-lap core construction |
| Insulation System | Oil-paper insulation system designed for reliable dielectric strength |
| Temperature Rise | Designed according to applicable standards and specified operating conditions |
| Impedance | Engineered according to transformer rating, inverter characteristics and system requirements |
| Voltage Regulation | Optimized for stable operation under varying inverter and load conditions |
| Tap Adjustment | Off-circuit tap changer with voltage adjustment range as per project specification |
| No-Load Loss | Optimized low-loss design in accordance with applicable Indian standards |
| Load Loss | Controlled load losses through optimized winding and core design |
| Energy Efficiency | Designed for reduced electrical losses and efficient long-duration operation |
| Transformer Oil | Electrical insulating mineral oil conforming to applicable Indian specifications |
| Oil Quantity | Determined according to transformer capacity, tank design and cooling requirements |
| Tank Construction | Heavy-duty fabricated mild-steel tank suitable for outdoor installation |
| Tank Protection | Weather-resistant and anti-corrosion surface treatment for extended service life |
| Conservator System | Conservator arrangement provided where applicable to the selected transformer design |
| Breathing Arrangement | Silica-gel breather system where applicable |
| Buchholz Protection | Provided for applicable conservator-type transformer configurations |
| Pressure Relief Arrangement | Pressure relief device / explosion vent provided according to transformer design |
| HV Termination | Suitable high-voltage bushings selected according to system voltage |
| LV Termination | LV bushing or cable-box arrangement based on installation requirements |
| Earthing Provision | Dedicated earthing terminals provided for safe electrical grounding |
| Radiator Arrangement | Efficient heat-dissipation system using pressed-steel or detachable radiators as required |
| Harmonic Load Capability | Designed to accommodate inverter-related harmonic loading within specified operating limits |
| Noise Performance | Designed to maintain acoustic levels within applicable standards and project requirements |
| Applicable Standards | IS 1180, IEC 60076 and other relevant standards as specified for the application |
| Installation | Suitable for plinth-mounted or other site-specific installation arrangements |
| Typical Applications | Solar power plants, renewable energy systems, industrial inverters and grid-connected applications |
Features Of Inverter Duty Transformers
- Engineered to deliver consistent voltage transformation and dependable power transfer, even when operating loads vary throughout the day.
- Designed with a practical footprint that supports convenient installation across commercial facilities, industrial sites, renewable energy projects, and utility applications.
- Robust mechanical construction provides enhanced resistance against electrical and mechanical stresses associated with short-circuit and fault conditions.
- High-quality insulation, sealing, and protective arrangements help safeguard internal components from moisture, dust, and demanding outdoor operating environments.
- Manufactured for dependable long-term operation with efficient thermal performance, durable components, reduced maintenance requirements, and consistent service reliability.
